Fun Page

OK - so you've told your spouse that you do modeling for a living, but you don't say just what kind of modeling it is.

Here's a chance to practice your modeling skills - with no penalty involved - just for the fun of it. (I know, Pro/E and fun don't usually go together in the same sentence). But try to have some fun anyway!

And remember to avoid the "blue child syndrome" - practice safe modeling!

Fun 1 - Pen On Surface

Constrain the pen so that it touches, and remains normal to, the wavy surface at any and all locations.

Fun 2 - Spirit Level

Construct features to let the ball always remain at the top of the glass tube, no matter what angle the level is at.

Fun 3 - Magic Frame

Does the rear vertical leg really come in front of the front top horizontal member? Is it an optical illusion or does it just look like one?

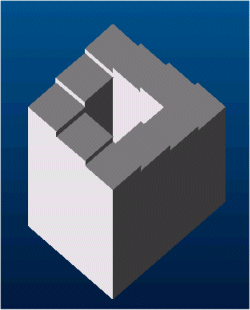

Fun 4 - Pro/E in Ten Steps?

These steps are continually climbing upwards - or downwards, if you're a pessimist - but stair all you want, the solution won't jump out at you.

Fun 5 - Soccer Ball

Kick this around and see if you can make a soccer ball
